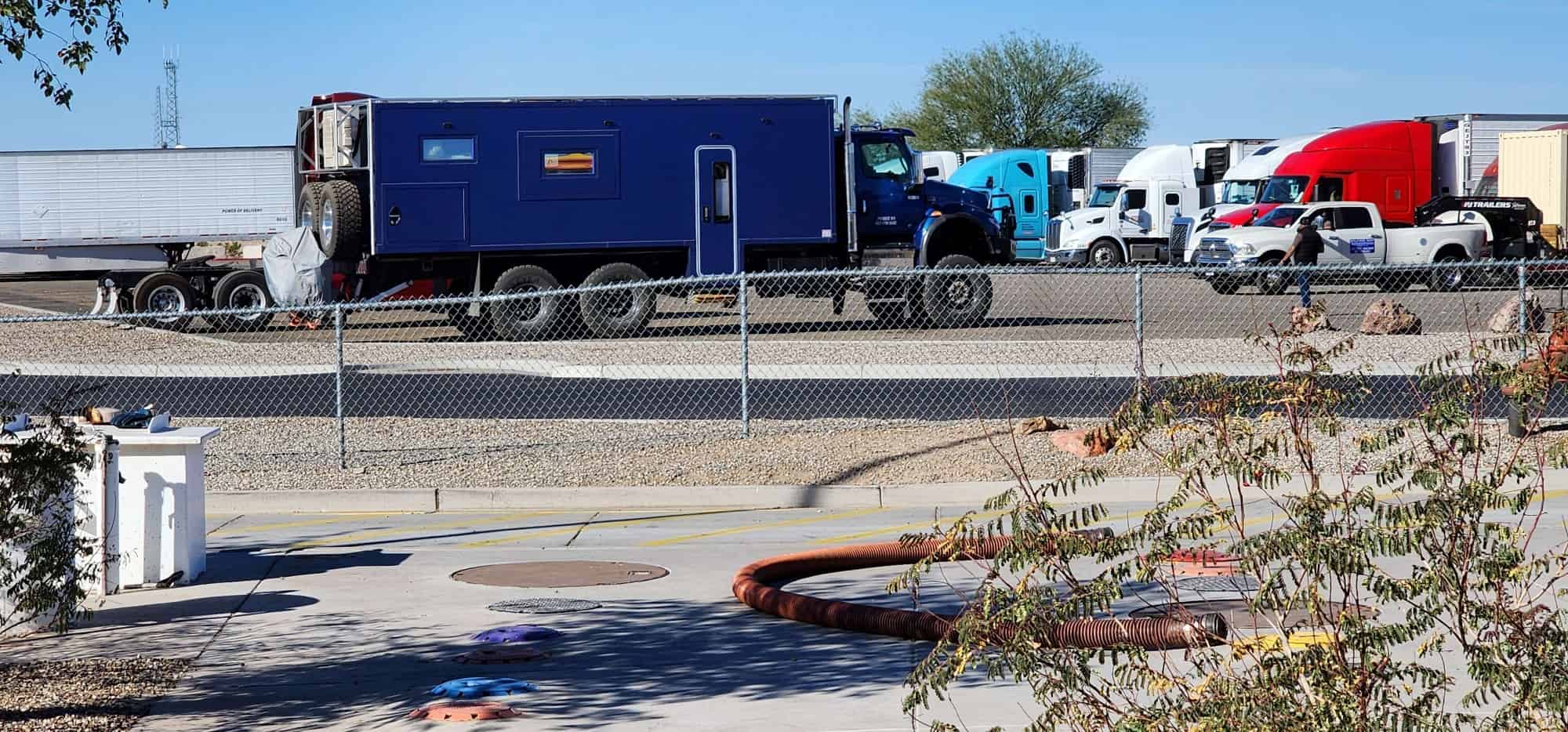

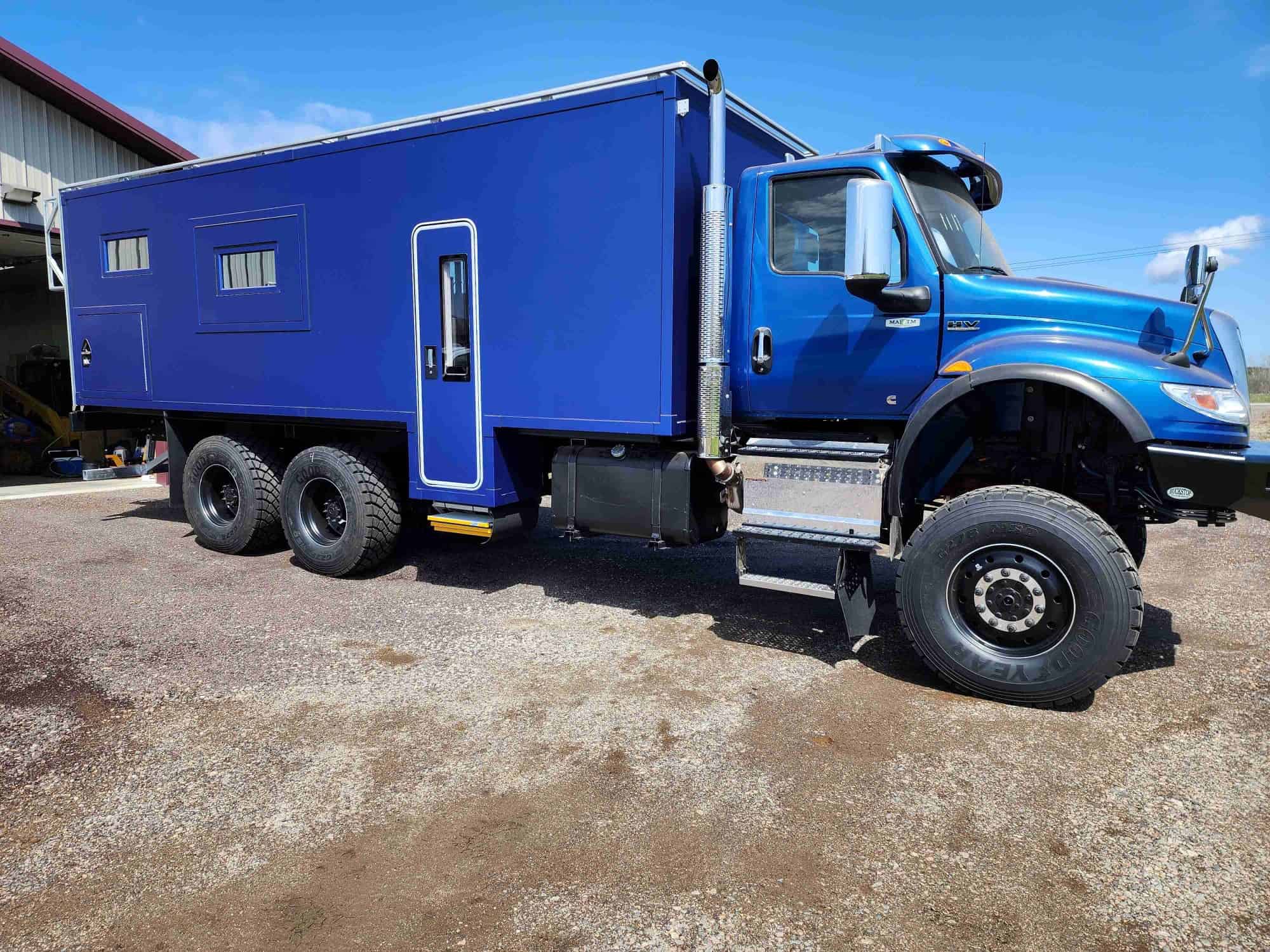

2022 International 6 X 6 Expedition Vehicle Truck

This Expedition Vehicle is not completely finished. New owner can use my layout or change to their liking.

Adventure with a 6 X 6 Off-Grid Expedition Vehicle. This rig is almost complete. Inside can be finished the way I was going with or changed to meet your needs. Built with 80/20 extrusions.
Built on an International HV607 chassis with the 6×6 conversion done by Tulsa Truck Manufacturing with the powerful and reliable Cummins L9 engine and Allison 6-Speed 3000 Severe Duty Automatic transmission.

Four season Expedition Rig, 23 foot extremely well insulated camper body built by Global Expedition Vehicles, the body of the camper is constructed of 60mm thick composite, closed-cell foam insulation sandwiched between fiberglass reinforced panels.

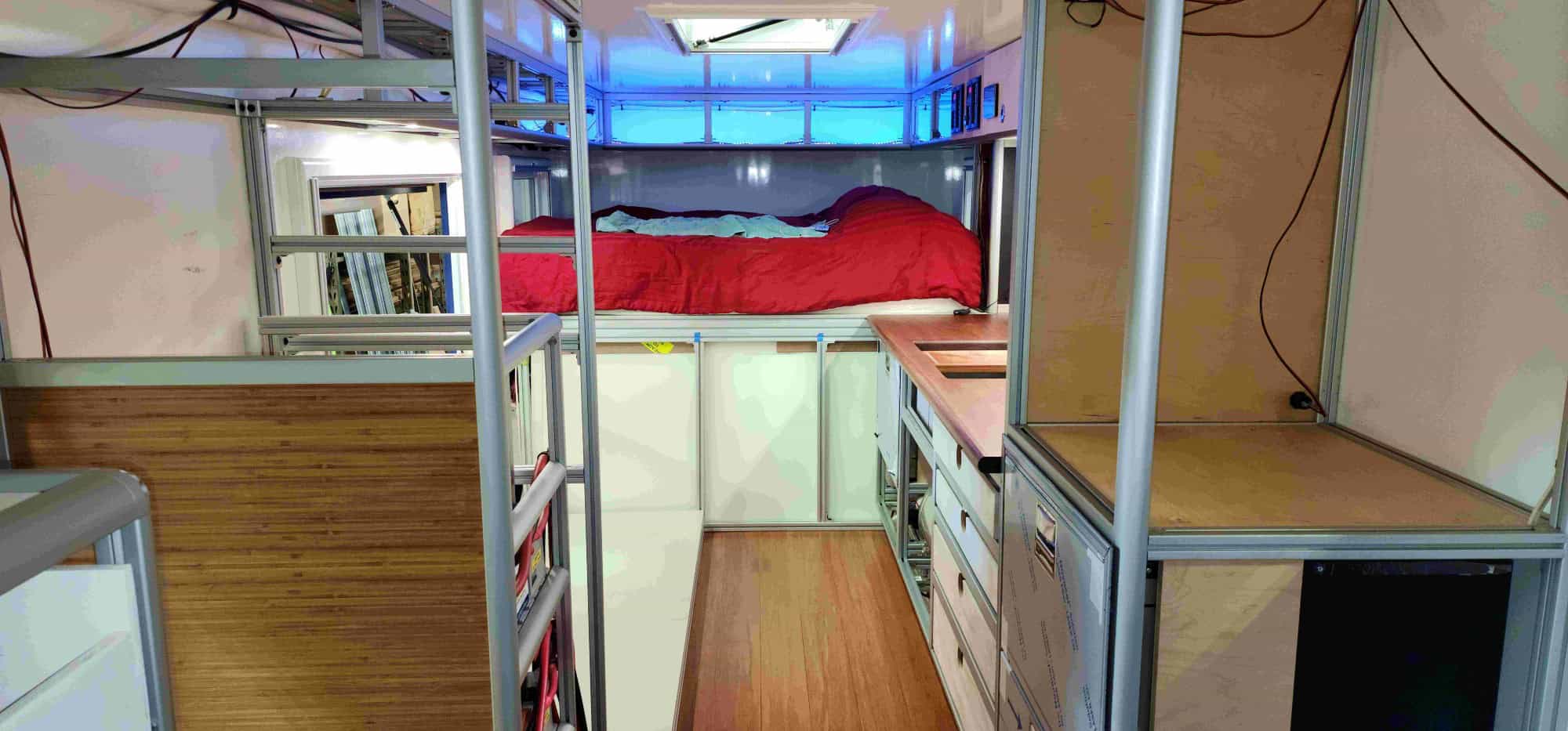

Extra-large kitchen galley with Custom Walnut countertop. Induction cooktop and large drawers. Set-up for dry bath with 30” x 30” shower stall. Queen size bed area.

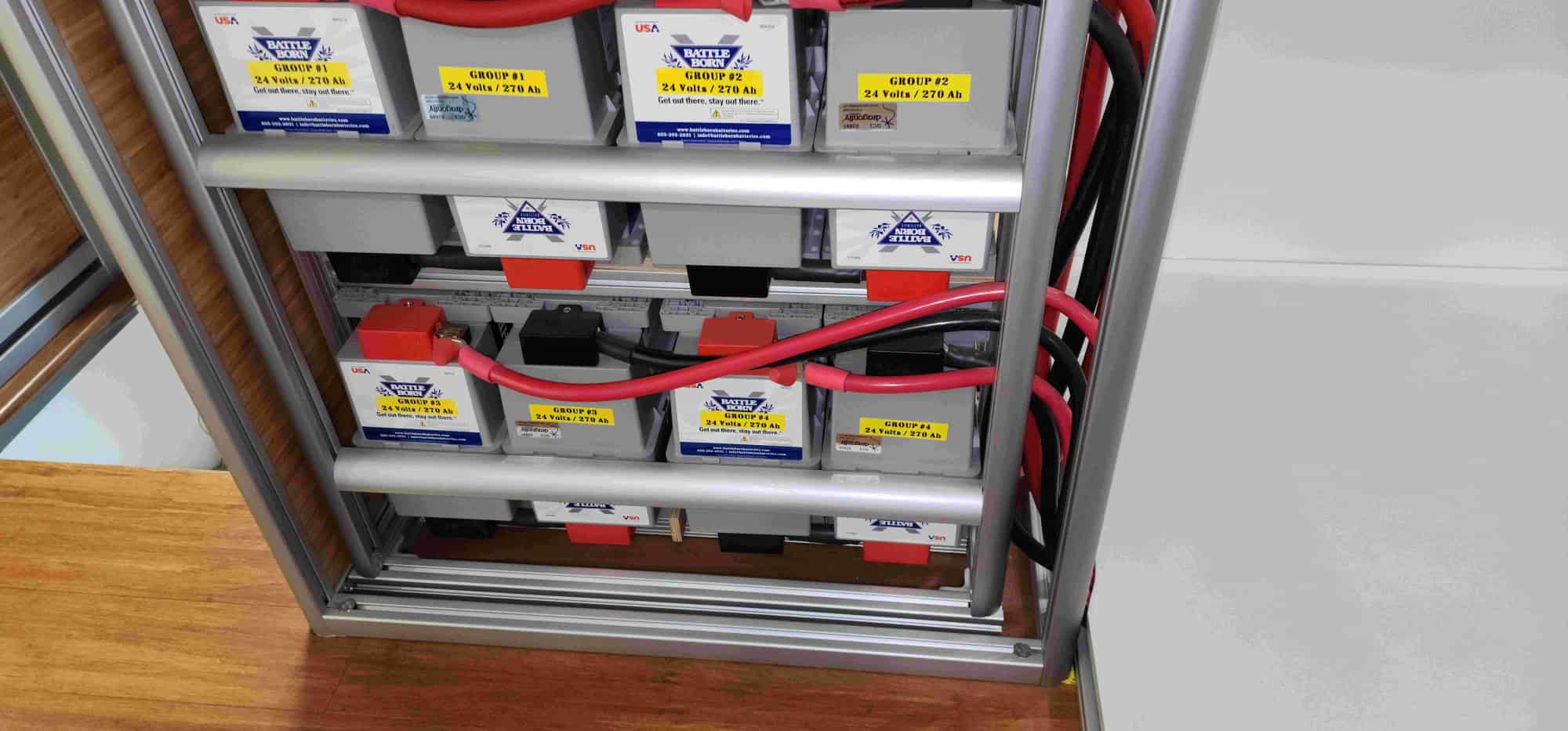

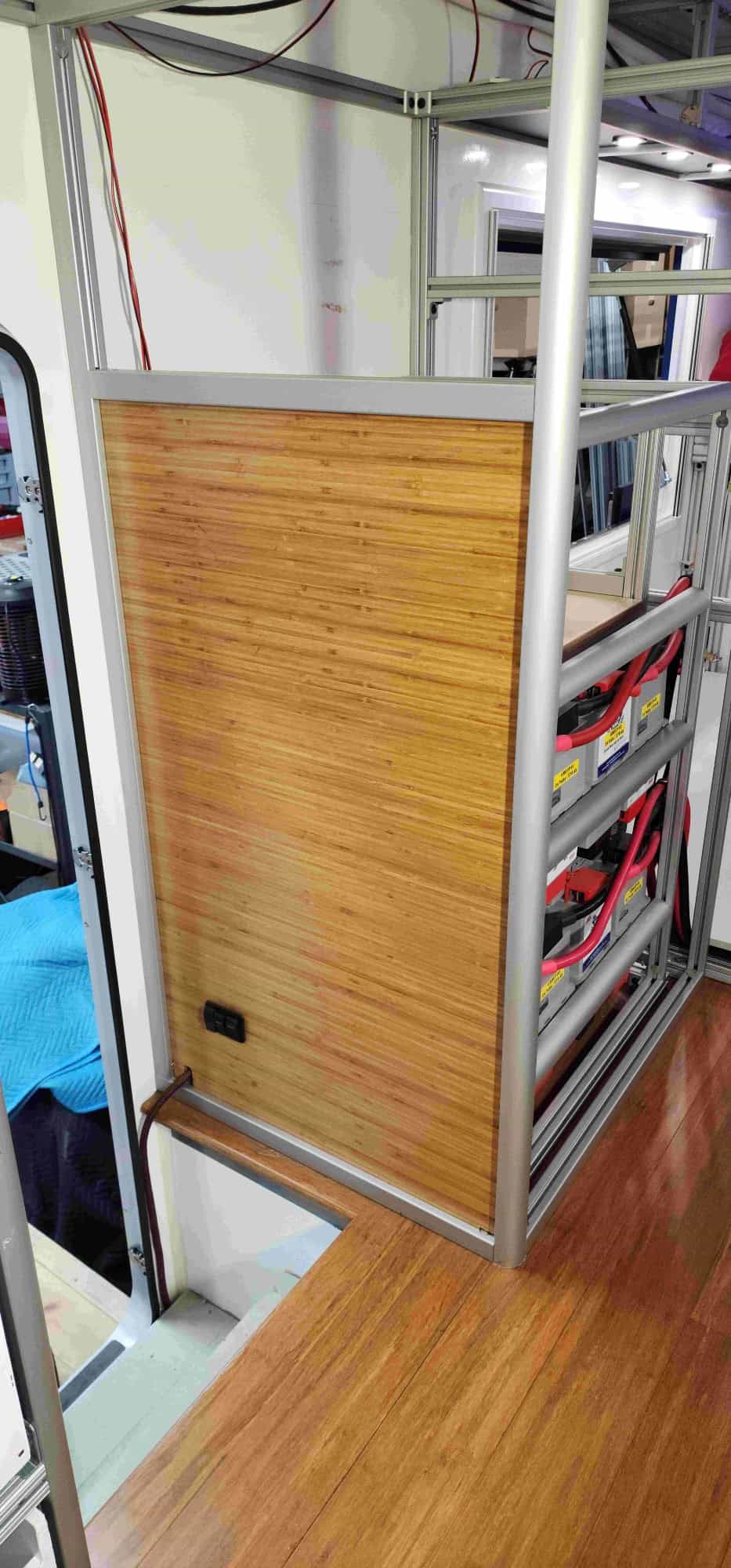

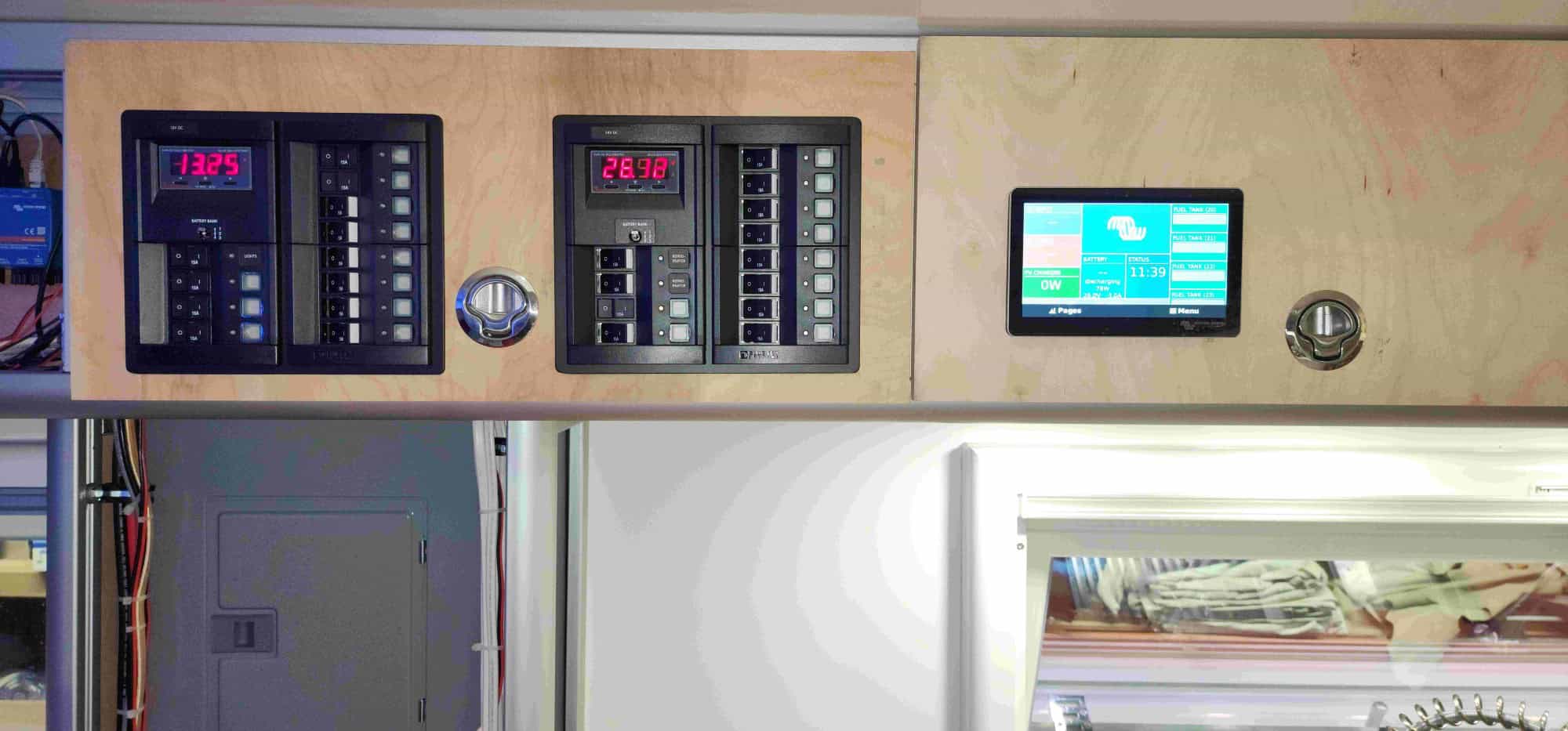

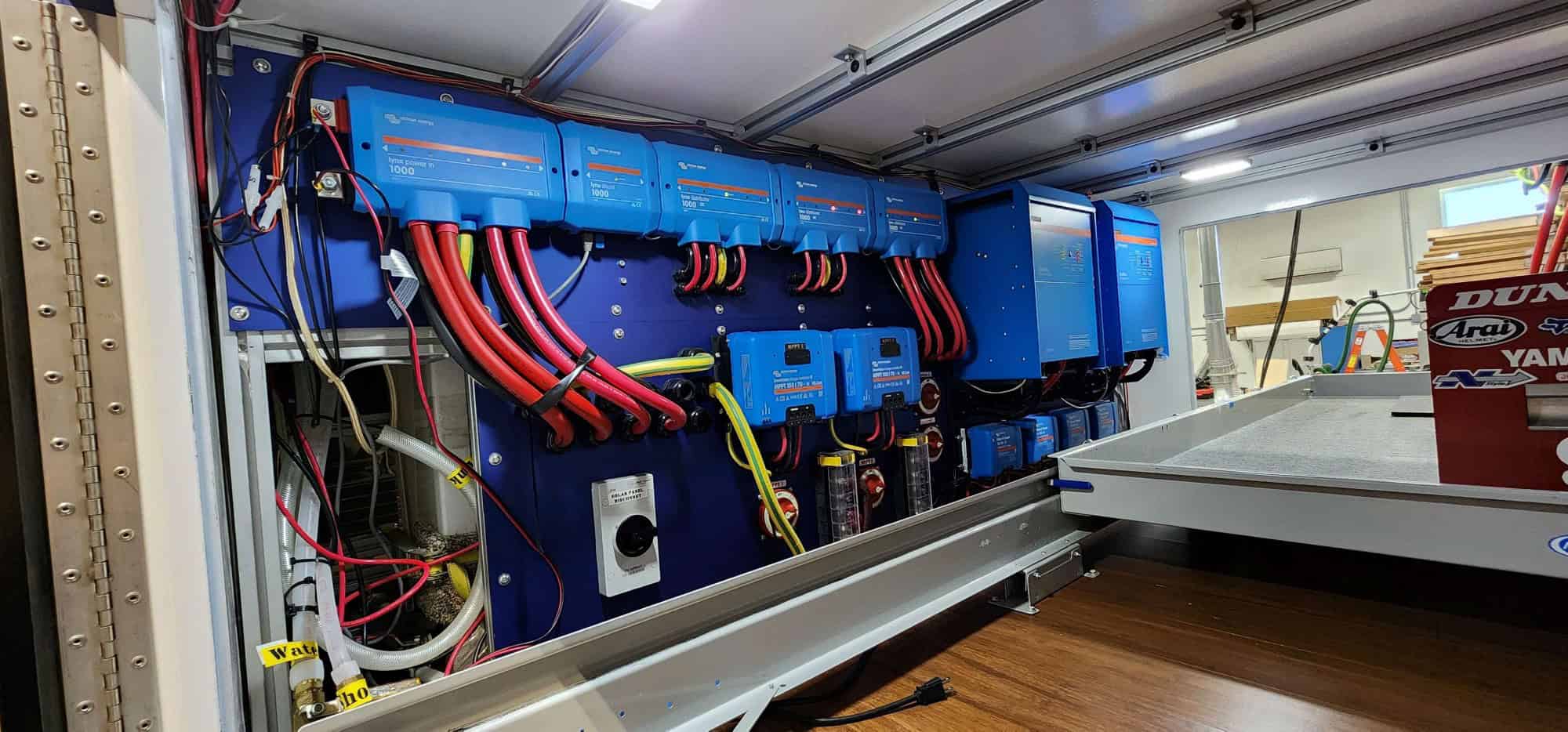

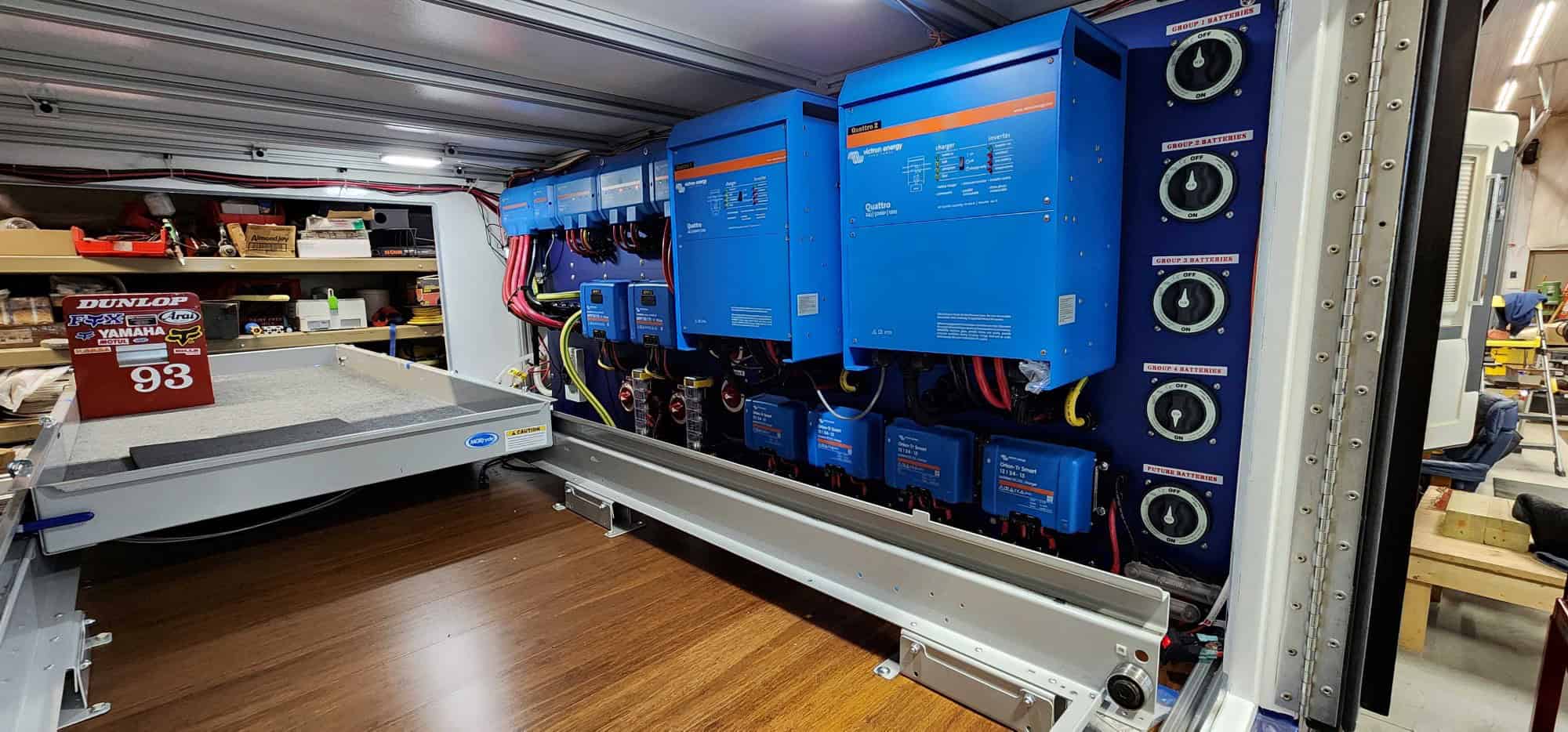

Massive energy capacity utilizing Battleborn Gamechanger batteries. 24 Volt, 1080 Amp Hours battery bank. (8 batteries in total). The Electrical System Victron Energy (2) Quattro 24V/5000va/120 amps. Wiring consisting of 12 Volt, 24 Volt, 120 Volt and 240 Volt. 2000w Solar Panel array with (2) Victron MPPT 150/70 Smart Solar charge controllers. (4) Victron Orion-Tr Smart 24/12 – 30 DC to DC chargers to charge house batteries while driving. (1) Victron Orion-Tr Smart 12/24 – 15 DC to DC to charge the truck batteries from the house batteries. This system is massive with a nominal 26000 Watt Hours at 24 Volts and 28000 Watt Hours at 26 Volts.
All windows and one sky-lights are KCT dual-panel glass units with integrated blinds and insect screens.
Custom Natura Opening Wall, approx. 52” x 31” with screen and KCT window inside.

-Cummins L9 350 HP Engine, 1050 lb.-ft Torque
-Allison 3000 RSD (Rough Service Duty)
-6X6 Chassis with lock differentials on all 3 axles, 40,000 lbs. Rear and 16,000 lbs. Front
-High Low Transfer Case
-Alcoa Aluminum Rims including 2 spares
-425/65R22.5 Goodyear MSD Tires 44.6 dia. 20 ply (2 Brand New Spares on the back of truck)
-Buck stop Front Bumper
-Front and Rear 25,000 lbs. Sherpa Winches mounted (not wired)
-(2) Extra Fuel Tanks (100 gallon) for a Total of 270 gallons
-Fuel Transfer Pump with water separator & filter, plus water separator & Fuel Filter on the Truck
-Approx. 60 Gallon Gray Water Tank with electric drain valve
-Custom Power Aluminum 3-stage entry steps
-Custom Rear Steel Bumper with Custom Aluminum Mansfield Bar. Mansfield Bar adjust to up position for rear clearance.
-80/20 Mini-split mount on the rear of box
-80/20 Mount for future storage box
-Curt Hitch Commercial Duty Class 5 Hitch, 2-1/2”
-Remco 12v Water Pump
-Pass-thru between cab and habitat
-Front and Rear Sherpa 25000# winches (Need to be wired)

-Mitsubishi MSZ-FS18NA & MUZ-FS18NA Mini-split 18,000 btu cooling & H2i plus performance offers 100% heating capacity at -5 degree and 70% to 80% heating capacity at -13-degree Fahrenheit
-Isotemp Basic 40 Water Heater
-Ruvati 28” Workstation Sink
– ¾” Bamboo Flooring
-Vitrofrigo DRW 180 Dual Drawer, Dual Zone fridge/fridge, fridge/freezer or freezer/freezer
-Vitrofrigo DRW 70 fridge or freezer
-MoRyde 90” x 36” Tray in Garage

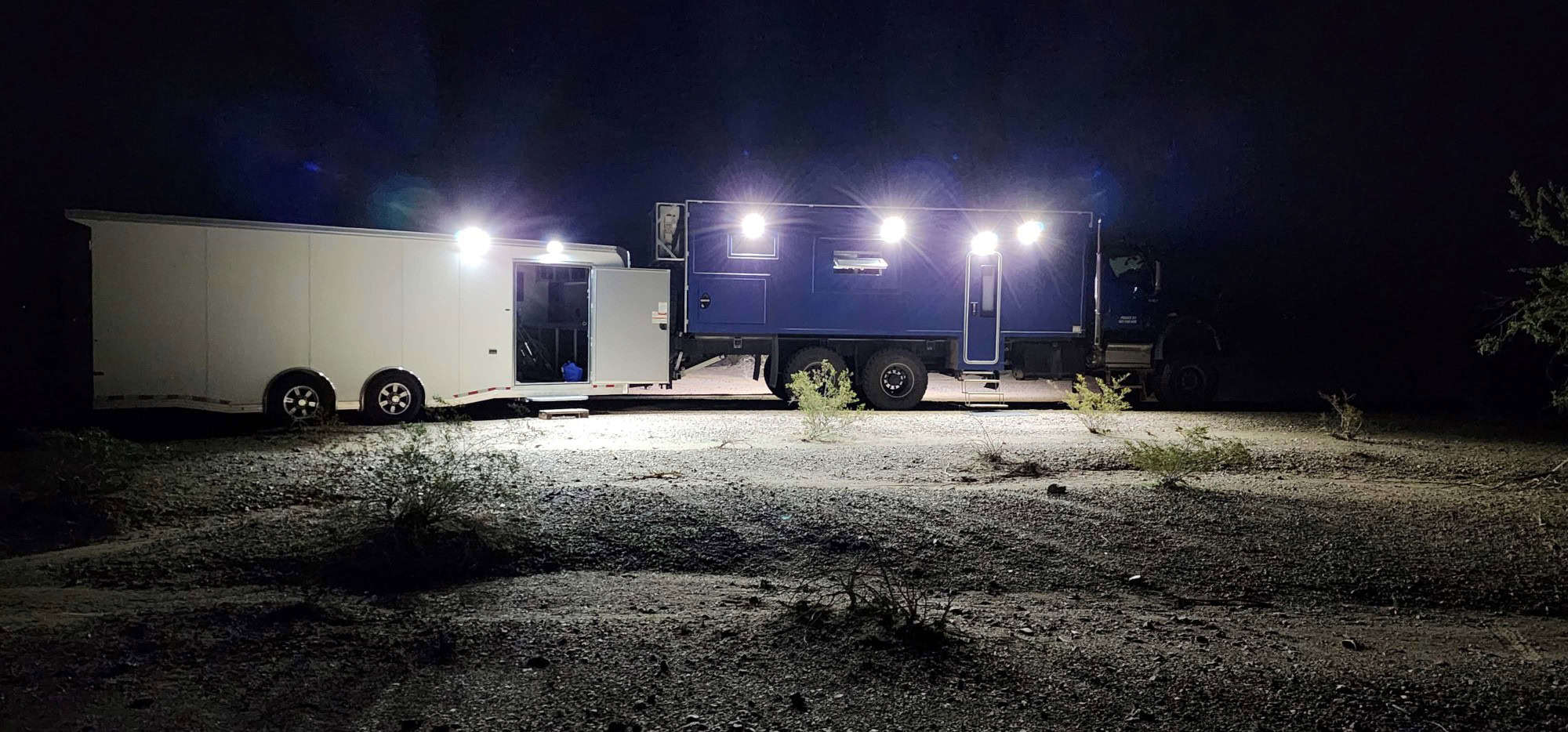

-Ridge Scene Lights on side 3-on each side
-Weboost Antennia
-Custom Water Tank Approx. 130 Gallon plus 11-gallon hot water heater
